LF / LFN Series – Round Flange Type Linear Ball Bearing

The LF series is our round flange type linear ball bearing, built on a steel ball rolling element + outer ring + retainer structure. The integrated round flange allows the housing to be bolted directly to a mounting plate, so no extra housing block is required. Designed for use with linear shafts, it delivers low-friction linear motion and is dimensionally interchangeable with mainstream LF series products. Available in standard type (LF..UU) and extended type (LF..LUU), covering shaft diameters from 6mm to 50mm.

Key Features

• Round Flange Mounting – Integral flange with bolt holes, mounts directly to a plate without a separate housing
• Assembly Replacement – Direct replacement of existing same-series bearing bodies in customer equipment
• Standard Type (UU) – Standard housing length, suitable for conventional load applications
• Extended Type (LUU) – Extended housing length, significantly improved rigidity and stability
• Double End Seals – UU indicates seals on both ends, keeping dust out and extending service life
• Wide Size Range – Fits shaft diameters from 6mm to 50mm, covering mainstream application requirements

Matching an LM, SCS, SBR or SHF unit? See which brands actually build this housing family in our linear bushing interchange chart.

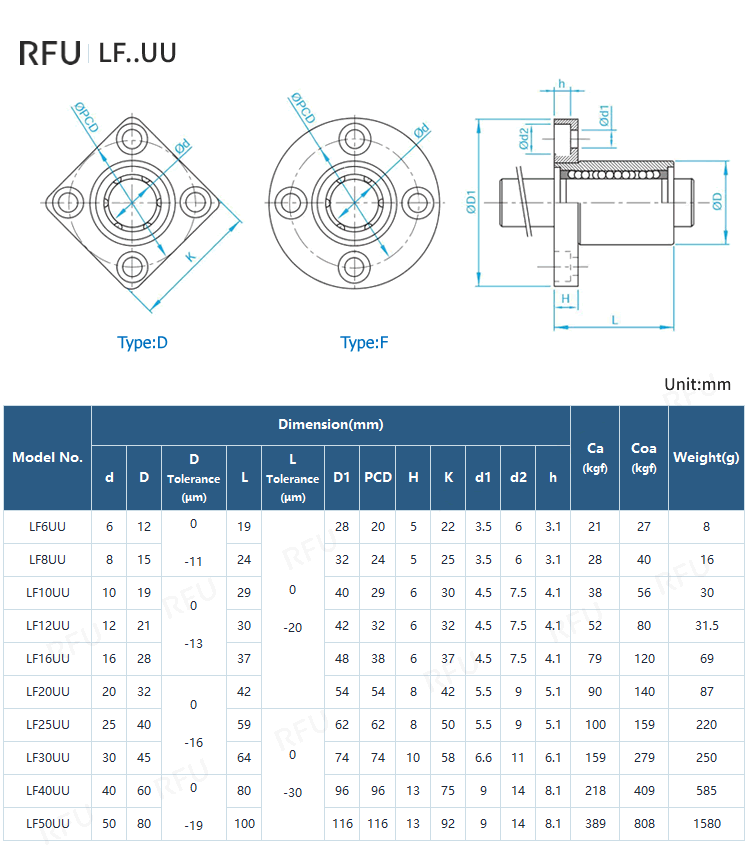

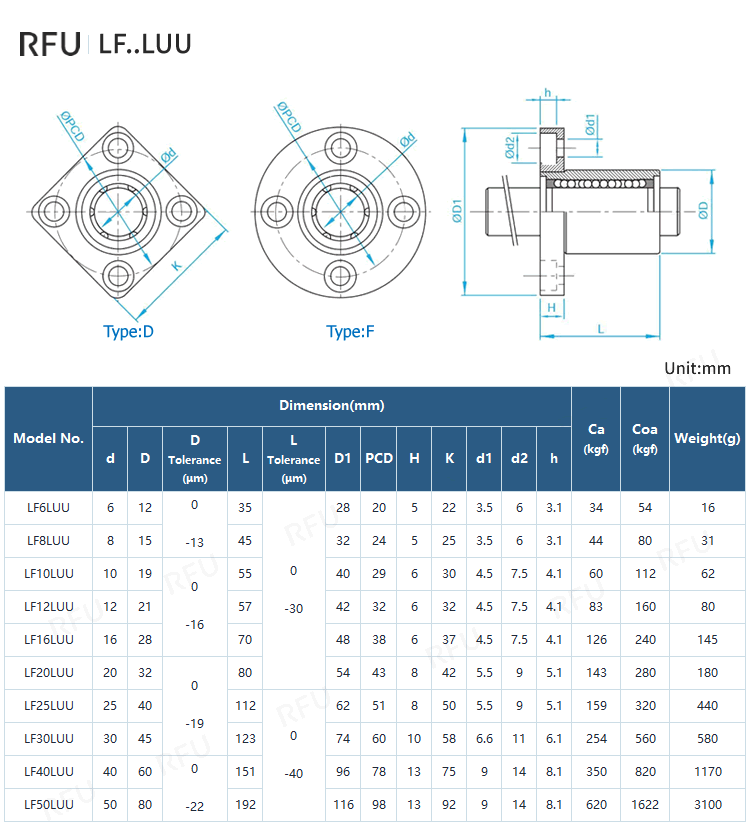

Full Specifications
