SCS..UU / SCS..LUU Series
The SCS series is our box type linear slider, consisting of an aluminum alloy housing with an integrated linear ball bearing, designed for use with linear shafts. This series is designed for complete assembly interchangeability with mainstream SCS series products. Available in standard type (SCS..UU) and extended type (SCS..LUU) specifications, suitable for applications including steel and metallurgy, textile industry, and general linear motion.
Key Features
- Assembly Replacement – Direct replacement of existing same-series slider bodies in customer equipment
- Designed for Linear Shafts – Works with linear shafts to achieve linear motion, with shaft ends supported and the middle section suspended
- Standard Type (UU) – Standard housing length, suitable for conventional load applications
- Extended Type (LUU) – Extended housing length, significantly improved rigidity and stability
- Aluminum Alloy Housing – Lightweight design, surface treated for corrosion resistance
- Double End Seals – UU indicates seals on both ends, effectively preventing dust ingress

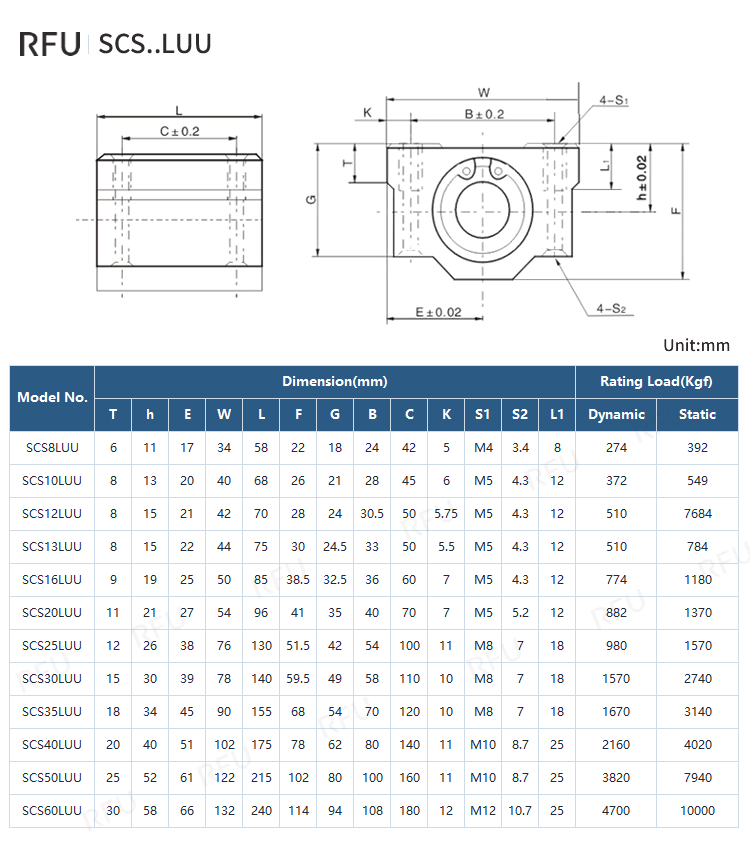

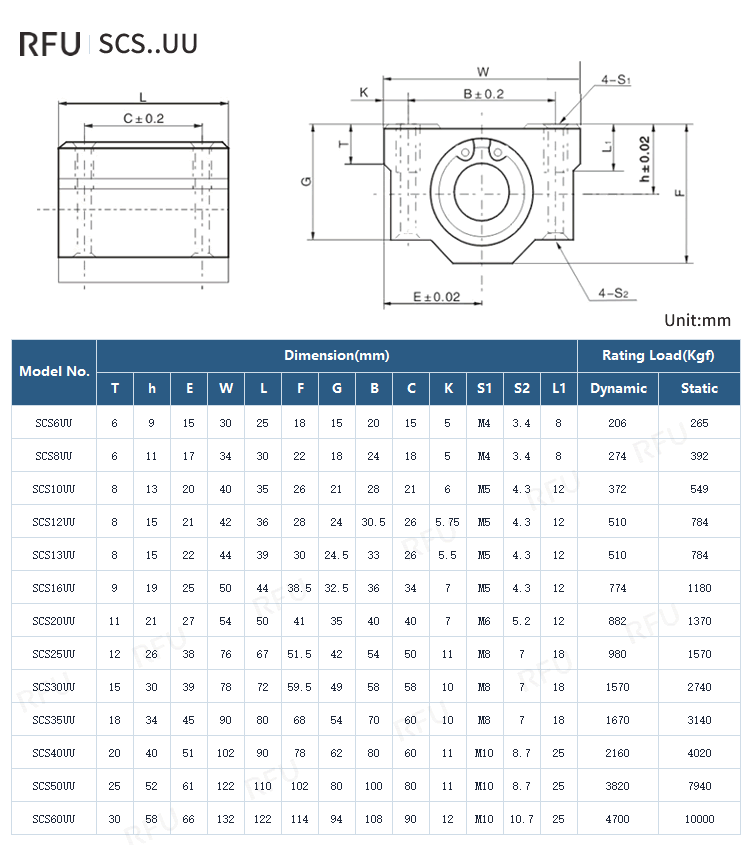

Full Specifications
© RFU Motion. Specifications subject to change without notice.
For the latest specs, please contact us.
Custom Manufacturing Available
Standard ball screws and linear guides don't always fit your design. Here's what RFU MOTION can customize based on your drawings:
- Shaft end machining — machined precisely to your drawing
- Screw length — cut to your exact requirement
- Preload — light, medium, heavy, or custom value
- Nut type — standard flange, special shape, or non-standard mounting interface
- Rail length — continuous cutting with end finishing (chamfer or grinding)
- Mounting holes — special thread sizes, hole spacing, or countersunk dimensions
Send us your drawing or specs — we'll deliver exactly what you need.
📦 MOQ: 1 piece / 1 set
⏱️ Lead time: Standard custom 5-7 days | Complex custom 7-15 days | Wire cutting +2 days
