SHF Series Support – Horizontal Flange Type Shaft Support
The SHF series is our horizontal flange type shaft support, made of aluminum alloy, used for fixing linear shafts from the side or end. This series is designed for complete assembly interchangeability with mainstream SHF series products. The shaft mounting area features a split design, allowing secure locking of the shaft with bolts. Compatible with SF series shafts, available in sizes from SHF3 to SHF60.
Key Features
- Assembly Replacement – Direct replacement of existing same-series support bodies in customer equipment
- Horizontal Flange Design – Flange structure with flange surface mounting, suitable for end support or intermittent support of shafts
- Split Locking Structure – Split design at shaft mounting area for secure bolt locking, providing firm fixation and easy assembly/disassembly
- Aluminum Alloy Material – Lightweight design with surface treatment for corrosion resistance
- Wide Size Range – Fits shaft diameters from 3mm to 60mm, covering mainstream application requirements

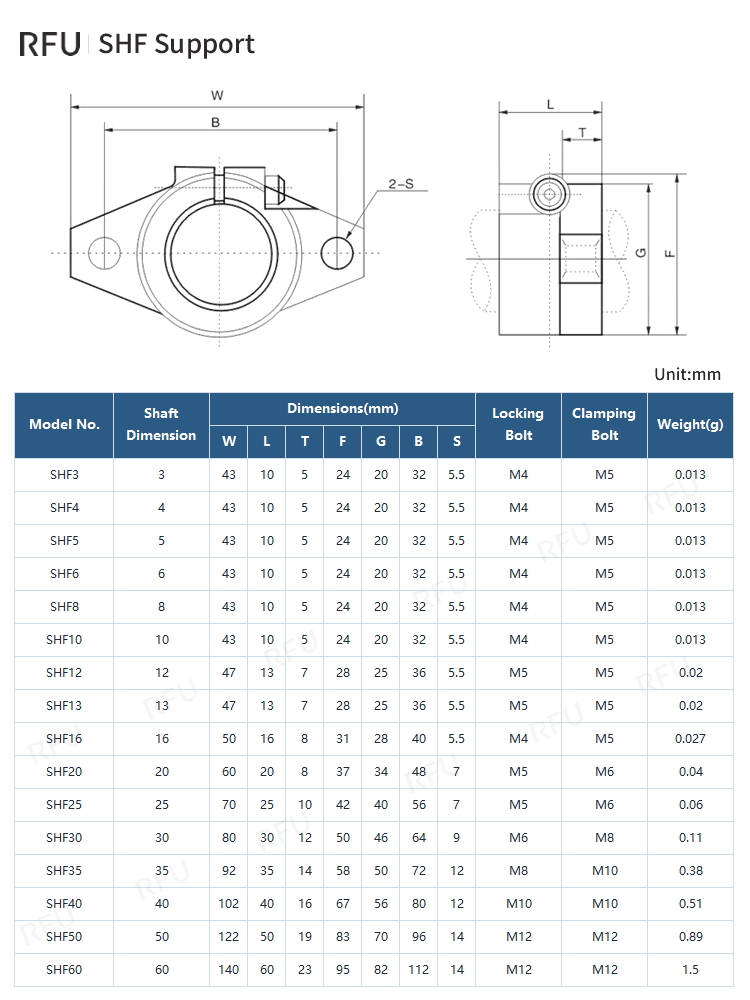

Full Specifications
