RBSE Economy Robot – Economy Single-Axis Robot

The RBSE series is our economy single-axis robot, featuring an aluminum extrusion profile as the foundation, with ball screw drive and SBR guide rail (aluminum base + chrome-plated shaft structure) guidance. Default configuration is open structure, with an optional bellows cover available upon request. Stroke range from 50mm to 120mm. Motor bracket compatible with 57mm and 86mm flange motors. Available in C5 and C7 ball screw accuracy grades. Suitable for economical linear motion applications including automation equipment, light-duty transfer, woodworking machinery, and dusty environments.

Key Features

  • Economy Design – Aluminum extrusion profile base for cost optimization, ideal for high-volume applications
  • SBR Guide Rail Guidance – SBR guide rail (aluminum base + chrome-plated shaft) offers high cost-performance and is suitable for dusty environments
  • Open / Dust Cover Optional – Default open structure; optional bellows cover available to suit different environmental requirements
  • Multiple Motor Compatibility – Motor bracket supports 57mm and 86mm flange motors
  • Dual Ball Screw Accuracy Grades – C5 grade for precision positioning; C7 grade for general transmission
  • Stroke Range – 50mm to 120mm, covering short-stroke application requirements
📧 Email me the spec sheet →

Full Specifications

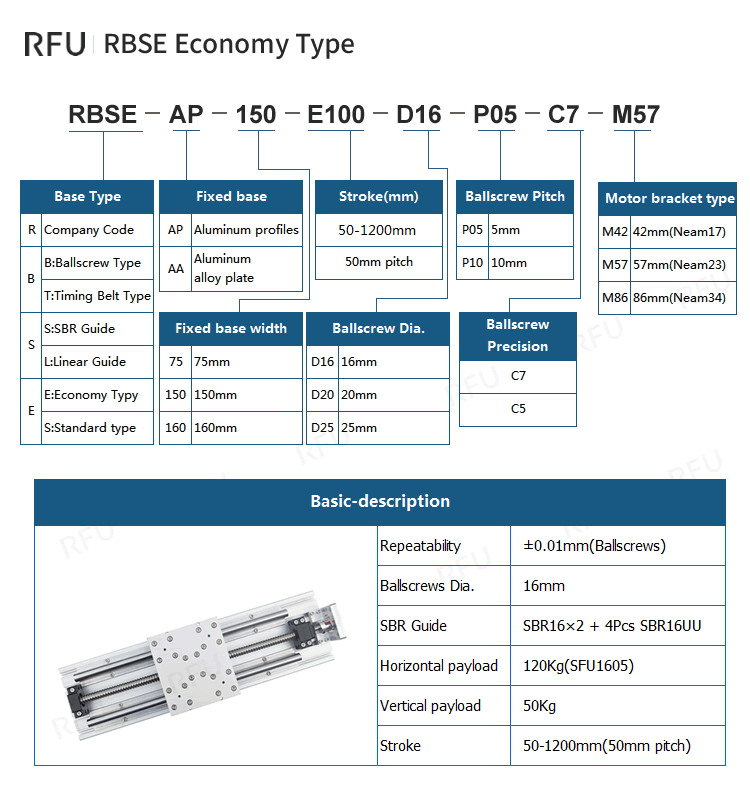

RBSE Economy Robot – Economy Single-Axis Robot Specifications

© RFU Motion. Specifications subject to change without notice.

For the latest specs, please contact us.

Custom Manufacturing Available

Standard ball screws and linear guides don't always fit your design. Here's what RFU MOTION can customize based on your drawings:

  • Shaft end machining — machined precisely to your drawing
  • Screw length — cut to your exact requirement
  • Preload — light, medium, heavy, or custom value
  • Nut type — standard flange, special shape, or non-standard mounting interface
  • Rail length — continuous cutting with end finishing (chamfer or grinding)
  • Mounting holes — special thread sizes, hole spacing, or countersunk dimensions

Send us your drawing or specs — we'll deliver exactly what you need.

📦 MOQ: 1 piece / 1 set

⏱️ Lead time: Standard custom 5-7 days | Complex custom 7-15 days | Wire cutting +2 days
