RBLS Standard Robot(KA150) – Standard Single-Axis Robot

The RBLS series is our standard single-axis robot, featuring an aluminum extruded base that integrates a ball screw and linear guideway into a modular design. With a width of 150mm, it is driven by a C7-grade ball screw and available in C grade (standard) and P grade (precision) accuracy options. Suitable for general industrial applications including automation equipment, transfer modules, and electronic assembly.

Key Features

  • Modular Design – Integrates ball screw and linear guideway into a compact structure, saving installation space
  • Aluminum Extruded Base – Aluminum alloy construction offering both lightweight and high rigidity
  • Dual Accuracy Options – C grade repeatability ±0.02mm, P grade repeatability ±0.01mm, meeting different positioning requirements
  • Easy Assembly & Maintenance – Modular design simplifies installation and upkeep
  • Multi-Axis Configurable – Single axes can be combined into multi-axis systems (X-Y, X-Y-Z, etc.), flexibly adapting to complex applications
📧 Email me the spec sheet →

Full Specifications

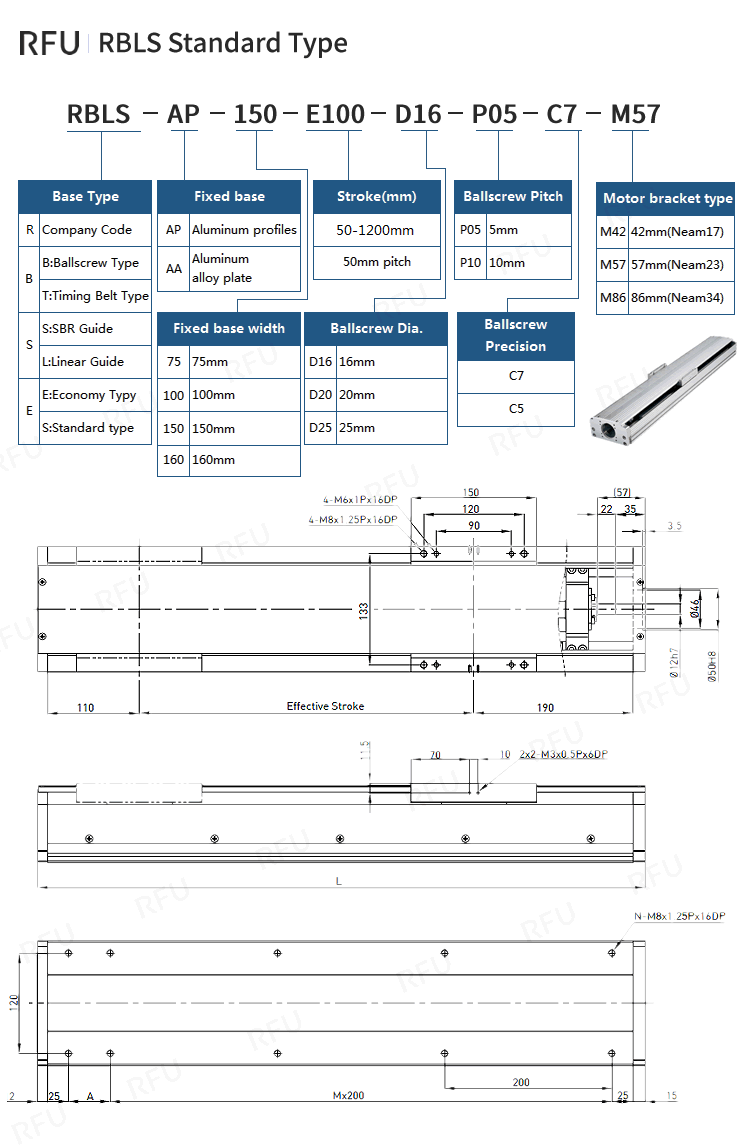

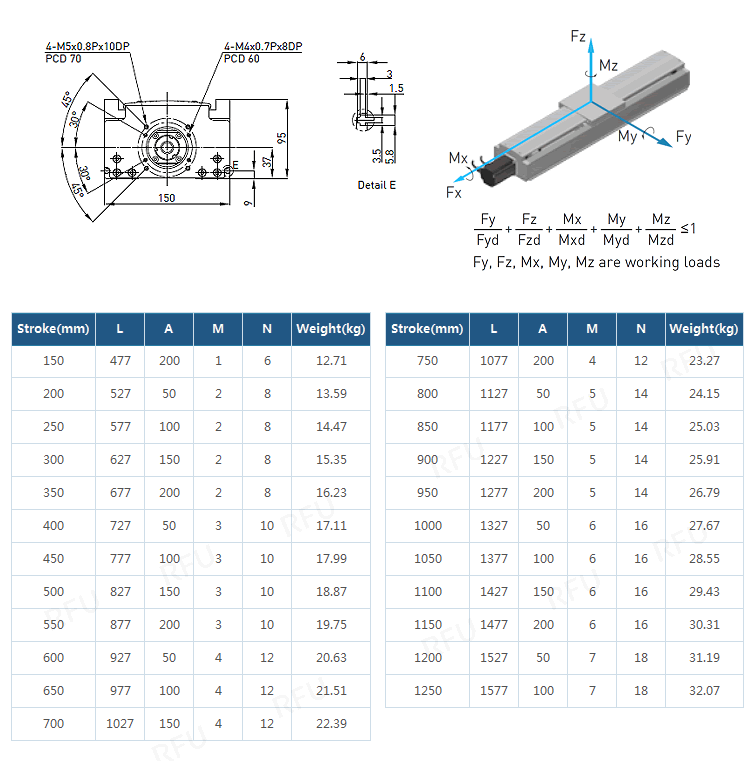

RBLS Standard Robot [KA150] – Standard Single-Axis Robot Specifications RBLS Standard Robot [KA150] – Standard Single-Axis Robot Specifications

© RFU Motion. Specifications subject to change without notice.

For the latest specs, please contact us.

Custom Manufacturing Available

Standard ball screws and linear guides don't always fit your design. Here's what RFU MOTION can customize based on your drawings:

  • Shaft end machining — machined precisely to your drawing
  • Screw length — cut to your exact requirement
  • Preload — light, medium, heavy, or custom value
  • Nut type — standard flange, special shape, or non-standard mounting interface
  • Rail length — continuous cutting with end finishing (chamfer or grinding)
  • Mounting holes — special thread sizes, hole spacing, or countersunk dimensions

Send us your drawing or specs — we'll deliver exactly what you need.

📦 MOQ: 1 piece / 1 set

⏱️ Lead time: Standard custom 5-7 days | Complex custom 7-15 days | Wire cutting +2 days
