HGR + HGH Slider Series – Square Type Heavy-Duty Linear Guideway

The HGH series is our flagship heavy-duty linear guideway product, paired with HGR series guide rails. It follows the widely copied HGH square-block footprint family; mounting dimensions carry over between makers, but verify block length and height per size. Suitable for CNC machine tools, machining centers, automation equipment, and other industrial applications requiring high rigidity and high load capacity. Available in HGH-CA (standard) and HGH-HA (extended) slider types.

Key Features

  • Assembly Replacement – Direct replacement of existing same-series assemblies
  • Heavy-Duty Design – High load rating, engineered specifically for heavy-duty applications
  • Extended Type (HA) – Longer slider body delivers significantly higher dynamic load rating and rigidity than CA type
  • Hardened Surface – Guide rails undergo surface hardening treatment for excellent wear resistance and long service life
  • High Positioning Accuracy – Precision machining processes meet demanding displacement accuracy requirements for industrial equipment

Looking for a HIWIN, THK or PMI equivalent? Compare this series against ten manufacturers in our linear guide interchange chart.

Pairs well with: HGW flange guides · EG low-assembly guides · RG roller guides
📧 Email me the spec sheet →

Full Specifications

HGR + HGH Slider Series — Block & Assembly Dimensions

All dimensions in mm unless otherwise noted.

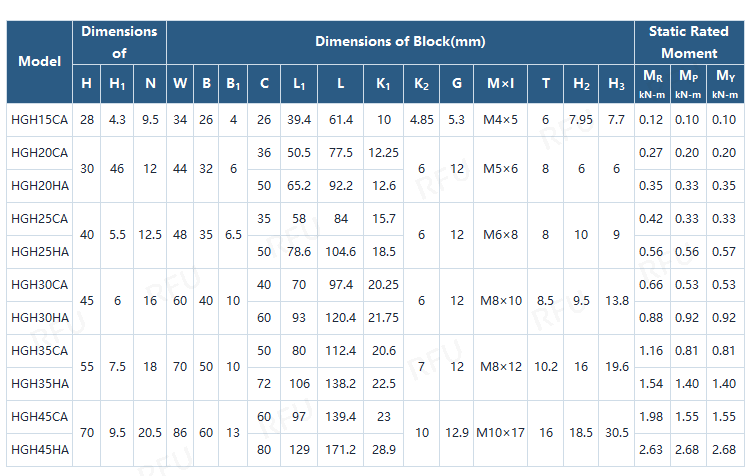

Dimensions of Assembly(mm) Dimensions of Block(mm) Static Rated Moment
Model H H1 N W B B1 C L1 L K1 K2 G M×l T H2 H3 MR kN-m MP kN-m MY kN-m
HGH15CARFUMOTION.COM 28 4.3 9.5 34 26 4 26 39.4 61.4 10 4.85 5.3 M4×5 6 7.95 7.7 0.12 0.1 0.1
HGH20CARFUMOTION.COM 30 46 12 44 32 6 36 50.5 77.5 12.25 6 12 M5×6 8 6 6 0.27 0.2 0.2
HGH20HARFUMOTION.COM 30 46 12 44 32 6 50 65.2 92.2 12.6 6 12 M5×6 8 6 6 0.35 0.33 0.35
HGH25CARFUMOTION.COM 40 5.5 12.5 48 35 6.5 35 58 84 15.7 6 12 M6×8 8 10 9 0.42 0.33 0.33
HGH25HARFUMOTION.COM 40 5.5 12.5 48 35 6.5 50 78.6 104.6 18.5 6 12 M6×8 8 10 9 0.56 0.56 0.57
HGH30CARFUMOTION.COM 45 6 16 60 40 10 40 70 97.4 20.25 6 12 M8×10 8.5 9.5 13.8 0.66 0.53 0.53
HGH30HARFUMOTION.COM 45 6 16 60 40 10 60 93 120.4 21.75 6 12 M8×10 8.5 9.5 13.8 0.88 0.92 0.92
HGH35CARFUMOTION.COM 55 7.5 18 70 50 10 50 80 112.4 20.6 7 12 M8×12 10.2 16 19.6 1.16 0.81 0.81
HGH35HARFUMOTION.COM 55 7.5 18 70 50 10 72 105.8 138.2 22.5 7 12 M8×12 10.2 16 19.6 1.54 1.4 1.4
HGH45CARFUMOTION.COM 70 9.5 20.5 86 60 13 60 97 139.4 23 10 12.9 M10×17 16 18.5 30.5 1.98 1.55 1.55
HGH45HARFUMOTION.COM 70 9.5 20.5 86 60 13 80 128.8 171.2 28.9 10 12.9 M10×17 16 18.5 30.5 2.63 2.68 2.68

HGR + HGH Slider Series — Dimensions — Rail Dimensions

All dimensions in mm unless otherwise noted.

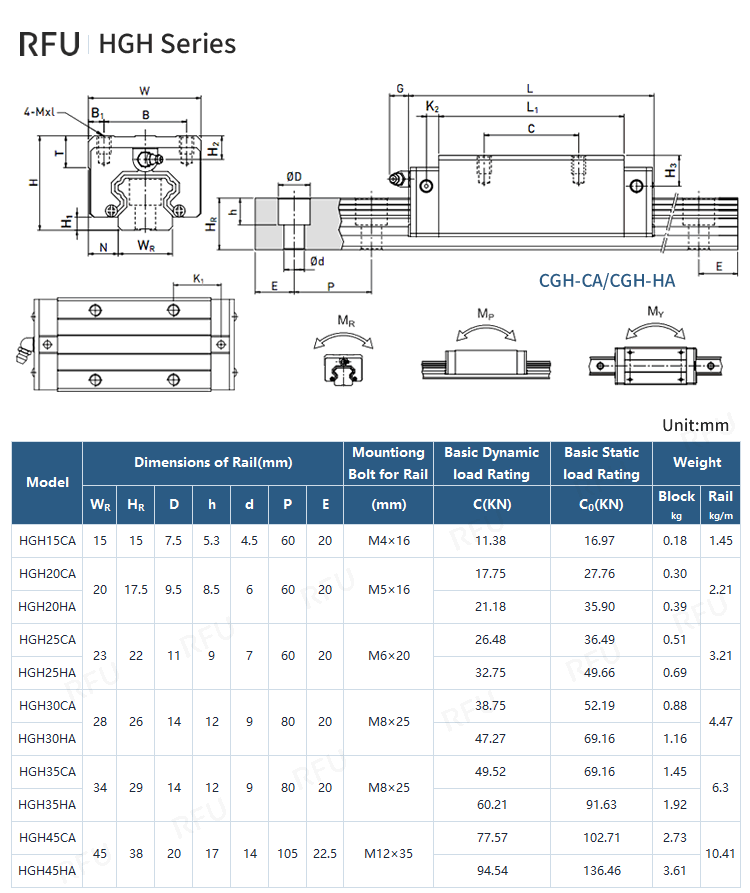

Dimensions of Rail(mm) Mountiong Bolt for Rail Basic Dynamic load Rating Basic Static load Rating Weight
Model WR HR D h d P E (mm) C(KN) C0(KN) Block kg Rail kg/m
HGH15CARFUMOTION.COM 15 15 7.5 5.3 4.5 60 20 M4×16 11.38 16.97 0.18 1.45
HGH20CARFUMOTION.COM 20 17.5 9.5 8.5 6 60 20 M5×16 17.75 27.76 0.3 2.21
HGH20HARFUMOTION.COM 20 17.5 9.5 8.5 6 60 20 M5×16 21.18 35.9 0.39 2.21
HGH25CARFUMOTION.COM 23 22 11 9 7 60 20 M6×20 26.48 36.49 0.51 3.21
HGH25HARFUMOTION.COM 23 22 11 9 7 60 20 M6×20 32.75 49.66 0.69 3.21
HGH30CARFUMOTION.COM 28 26 14 12 9 80 20 M8×25 38.75 52.19 0.88 4.47
HGH30HARFUMOTION.COM 28 26 14 12 9 80 20 M8×25 47.27 69.16 1.16 4.47
HGH35CARFUMOTION.COM 34 29 14 12 9 80 20 M8×25 49.52 69.16 1.45 6.3
HGH35HARFUMOTION.COM 34 29 14 12 9 80 20 M8×25 60.21 91.63 1.92 6.3
HGH45CARFUMOTION.COM 45 38 20 17 14 105 22.5 M12×35 77.57 102.71 2.73 10.41
HGH45HARFUMOTION.COM 45 38 20 17 14 105 22.5 M12×35 94.54 136.46 3.61 10.41
HGH..CA Series Linear Guide Specifications HGH..HA Series Linear Guide Specifications
