SF Series Shaft – Chrome-Plated Linear Shaft

The SF series is our standard chrome-plated linear shaft, made of bearing steel with surface induction hardening and hard chrome plating. It serves as the companion guide rail for linear bearings. This series is designed for complete assembly interchangeability with mainstream SF series shafts. Available in sizes from SF6 to SF60, with shaft end dimensions customizable per customer drawings. Suitable for linear motion applications including automation equipment, linear modules, and precision measuring instruments.

Key Features

• Assembly Replacement – Direct replacement of existing same-series shafts in customer equipment; custom machining available per customer drawings
• Hard Chrome Plated – Surface hard chrome plated for rust and corrosion resistance, with a bright and aesthetic appearance

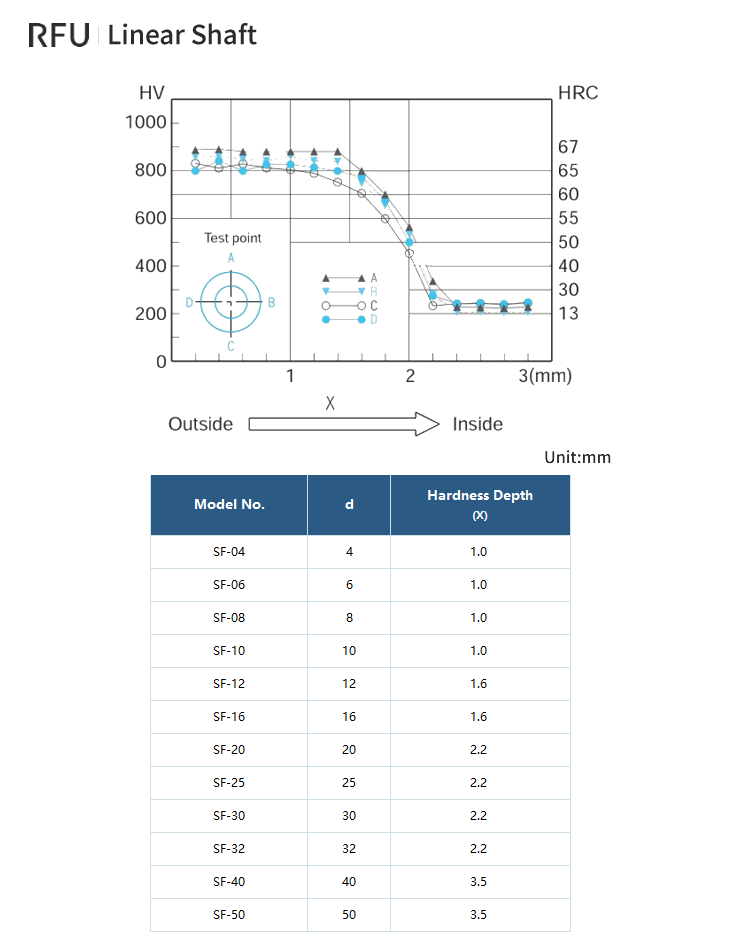

• Induction Hardened – Surface induction hardened to HRC60±2 for excellent wear resistance and long service life
• High Precision Tolerance – Shaft diameter tolerance complies with g6 standard for precise fit with linear bearings
• Wide Size Range – Fits shaft diameters from 3mm to 60mm; length customizable per customer requirements

Full Specifications
