EGR + EGH / EGW Slider Series – Low-Assembly Ball Linear Guideway
The EGH/EGW series is our low-assembly ball linear guideway product, paired with EGR series guide rails. Featuring reduced assembly height and shortened slider length, it is ideal for compact equipment with limited space. It follows the widely copied EG low-assembly footprint family; verify mounting dimensions per size before substituting. Available in both carbon steel and stainless steel material options, suitable for high-speed automation equipment, medical instruments, inspection devices, and other space-constrained applications. Offered in standard (CA/CC) and extended (HA/HC) slider types, as well as square (EGH) and flange (EGW) mounting styles.
Key Features
- Assembly Replacement – Direct replacement of existing same-series assemblies (slider + EGR guide rail) in customer equipment
- Low-Assembly Design – Reduced assembly height and shortened slider length, optimized for compact equipment with limited space
- Extended Type (HA/HC) – Longer slider body delivers higher dynamic load rating and rigidity than standard type

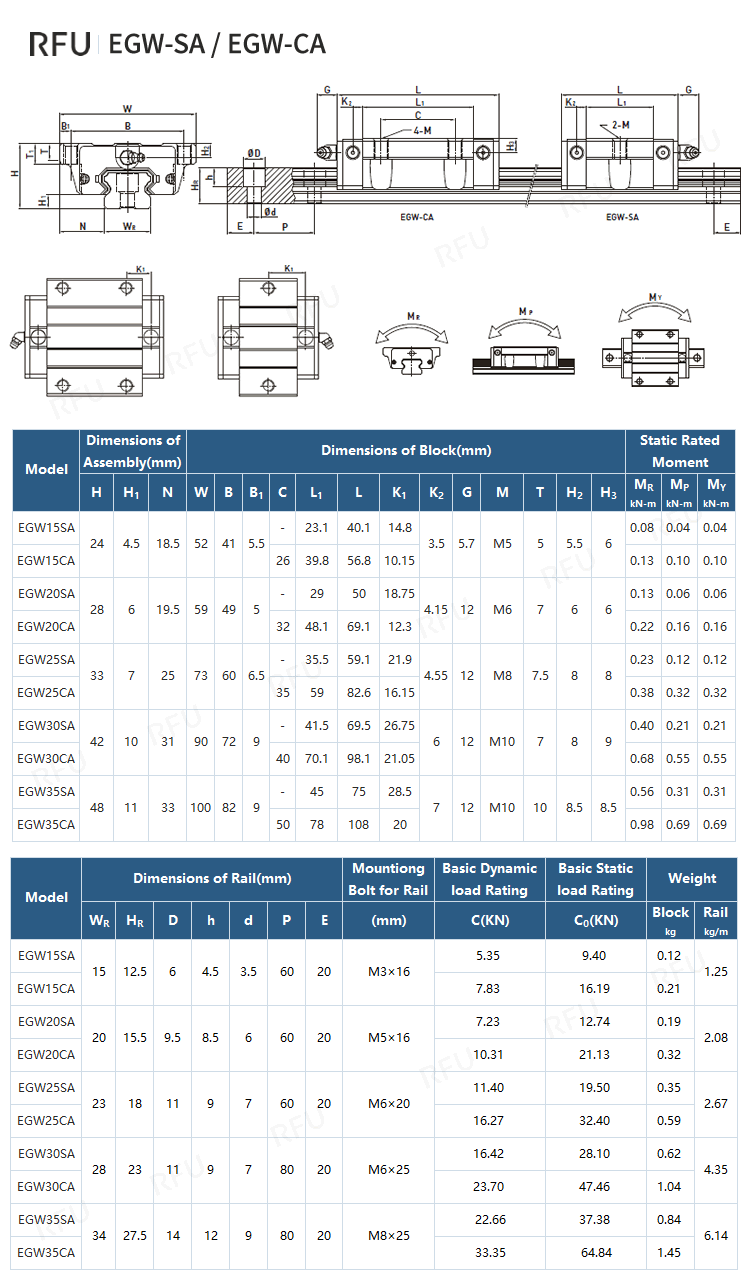

- Flange Option (EGW) – Mounting holes located on both sides of the slider; can be secured from top or side for greater installation flexibility
- High Positioning Accuracy – Precision machining processes meet demanding displacement accuracy requirements
- Hardened Surface – Guide rails undergo surface hardening treatment for excellent wear resistance and long service life
Looking for a HIWIN, THK or PMI equivalent? Compare this series against ten manufacturers in our linear guide interchange chart.

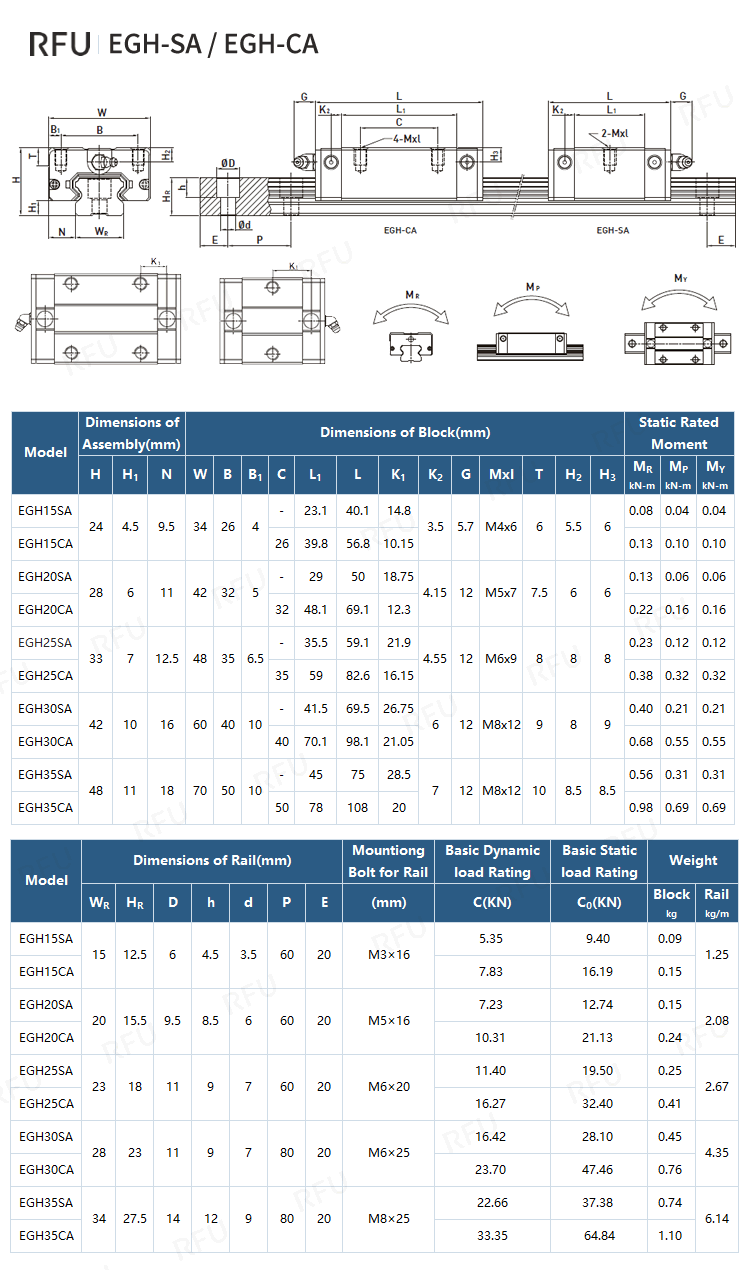

Full Specifications
| Dimensions of Assembly(mm) | Dimensions of Block(mm) | Static Rated Moment | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | MR kN-m | MP kN-m | MY kN-m |
| EGH15SARFUMOTION.COM | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 0.08 | 0.04 | 0.04 |
| EGH15CARFUMOTION.COM | 24 | 4.5 | 9.5 | 34 | 26 | 4 | 26 | 39.8 | 56.8 | 10.15 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 0.13 | 0.1 | 0.1 |
| EGH20SARFUMOTION.COM | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 0.13 | 0.06 | 0.06 |
| EGH20CARFUMOTION.COM | 28 | 6 | 11 | 42 | 32 | 5 | 32 | 48.1 | 69.1 | 12.3 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 0.22 | 0.16 | 0.16 |
| EGH25SARFUMOTION.COM | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 0.23 | 0.12 | 0.12 |
| EGH25CARFUMOTION.COM | 33 | 7 | 12.5 | 48 | 35 | 6.5 | 35 | 59 | 82.6 | 16.15 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 0.38 | 0.32 | 0.32 |
| EGH30SARFUMOTION.COM | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M8x12 | 9 | 8 | 9 | 0.4 | 0.21 | 0.21 |
| EGH30CARFUMOTION.COM | 42 | 10 | 16 | 60 | 40 | 10 | 40 | 70.1 | 98.1 | 21.05 | 6 | 12 | M8x12 | 9 | 8 | 9 | 0.68 | 0.55 | 0.55 |
| EGH35SARFUMOTION.COM | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8x12 | 10 | 8.5 | 8.5 | 0.56 | 0.31 | 0.31 |
| EGH35CARFUMOTION.COM | 48 | 11 | 18 | 70 | 50 | 10 | 50 | 78 | 108 | 20 | 7 | 12 | M8x12 | 10 | 8.5 | 8.5 | 0.98 | 0.69 | 0.69 |
| Dimensions of Rail(mm) | Mountiong Bolt for Rail | Basic Dynamic load Rating | Basic Static load Rating | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | WR | HR | D | h | d | P | E | (mm) | C(KN) | C0(KN) | Block kg | Rail kg/m |
| EGH15SARFUMOTION.COM | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3×16 | 5.35 | 9.4 | 0.09 | 1.25 |
| EGH15CARFUMOTION.COM | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3×16 | 7.83 | 16.19 | 0.15 | 1.25 |
| EGH20SARFUMOTION.COM | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5×16 | 7.23 | 12.74 | 0.15 | 2.08 |
| EGH20CARFUMOTION.COM | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5×16 | 10.31 | 21.13 | 0.24 | 2.08 |
| EGH25SARFUMOTION.COM | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6×20 | 11.4 | 19.5 | 0.25 | 2.67 |
| EGH25CARFUMOTION.COM | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6×20 | 16.27 | 32.4 | 0.41 | 2.67 |
| EGH30SARFUMOTION.COM | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6×25 | 16.42 | 28.1 | 0.45 | 4.35 |
| EGH30CARFUMOTION.COM | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6×25 | 23.7 | 47.46 | 0.76 | 4.35 |
| EGH35SARFUMOTION.COM | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8×25 | 22.66 | 37.38 | 0.74 | 6.14 |
| EGH35CARFUMOTION.COM | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8×25 | 33.35 | 64.84 | 1.1 | 6.14 |
© RFU Motion. Specifications subject to change without notice.
For the latest specs, please contact us.
Custom Manufacturing Available
Standard ball screws and linear guides don't always fit your design. Here's what RFU MOTION can customize based on your drawings:
- Shaft end machining — machined precisely to your drawing
- Screw length — cut to your exact requirement
- Preload — light, medium, heavy, or custom value
- Nut type — standard flange, special shape, or non-standard mounting interface
- Rail length — continuous cutting with end finishing (chamfer or grinding)
- Mounting holes — special thread sizes, hole spacing, or countersunk dimensions
Send us your drawing or specs — we'll deliver exactly what you need.
📦 MOQ: 1 piece / 1 set
⏱️ Lead time: Standard custom 5-7 days | Complex custom 7-15 days | Wire cutting +2 days
